Pump Systems

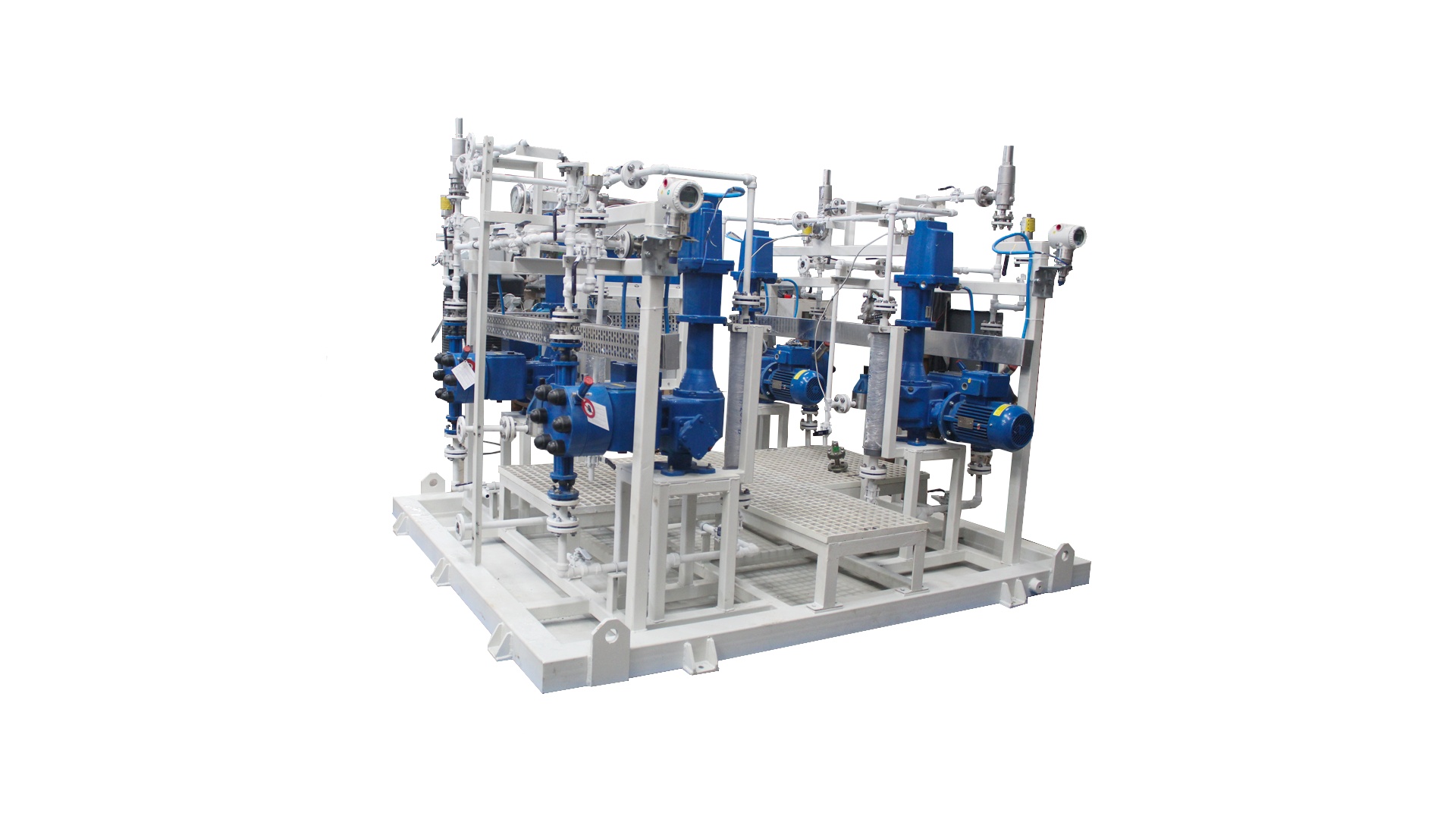

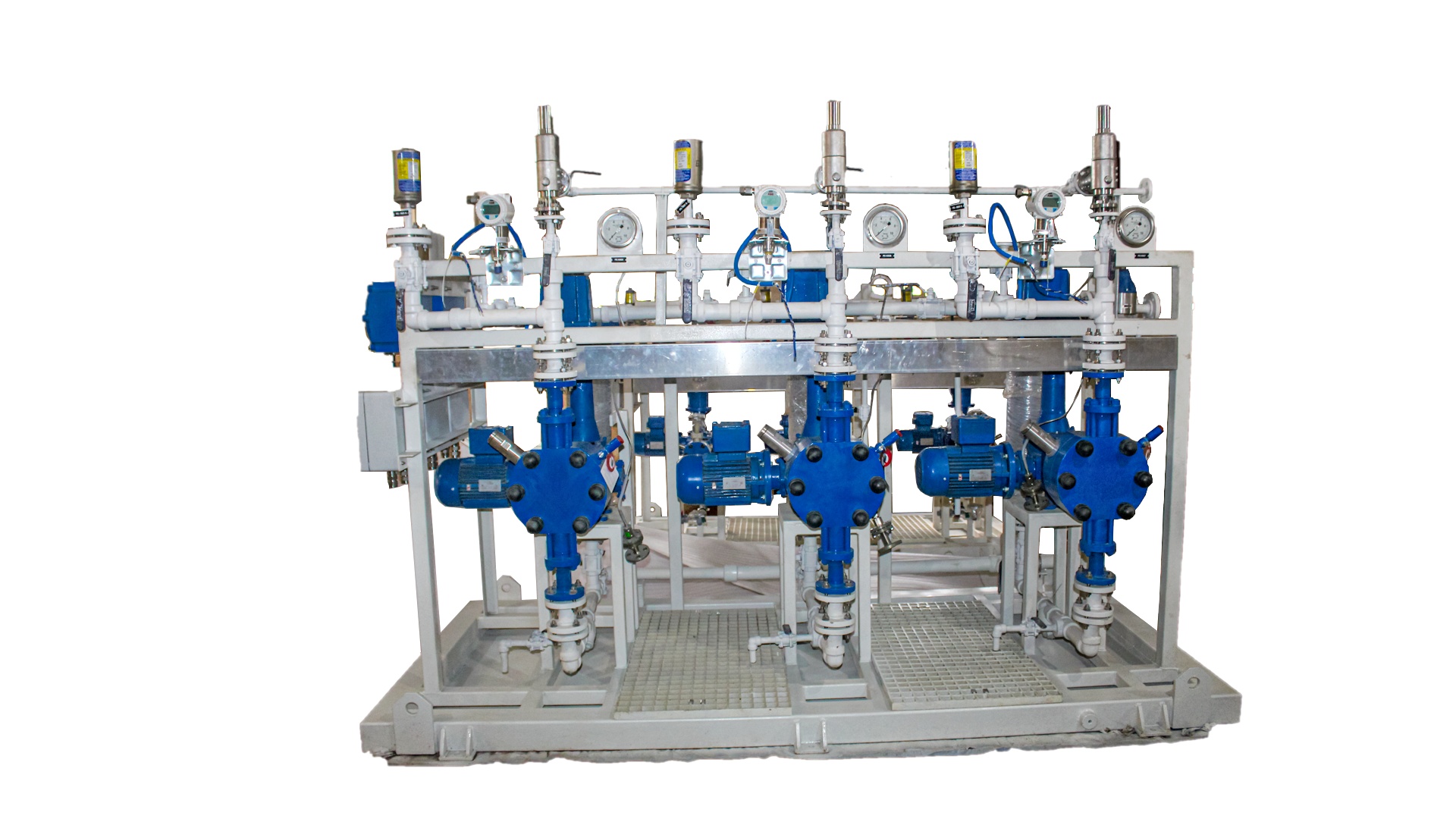

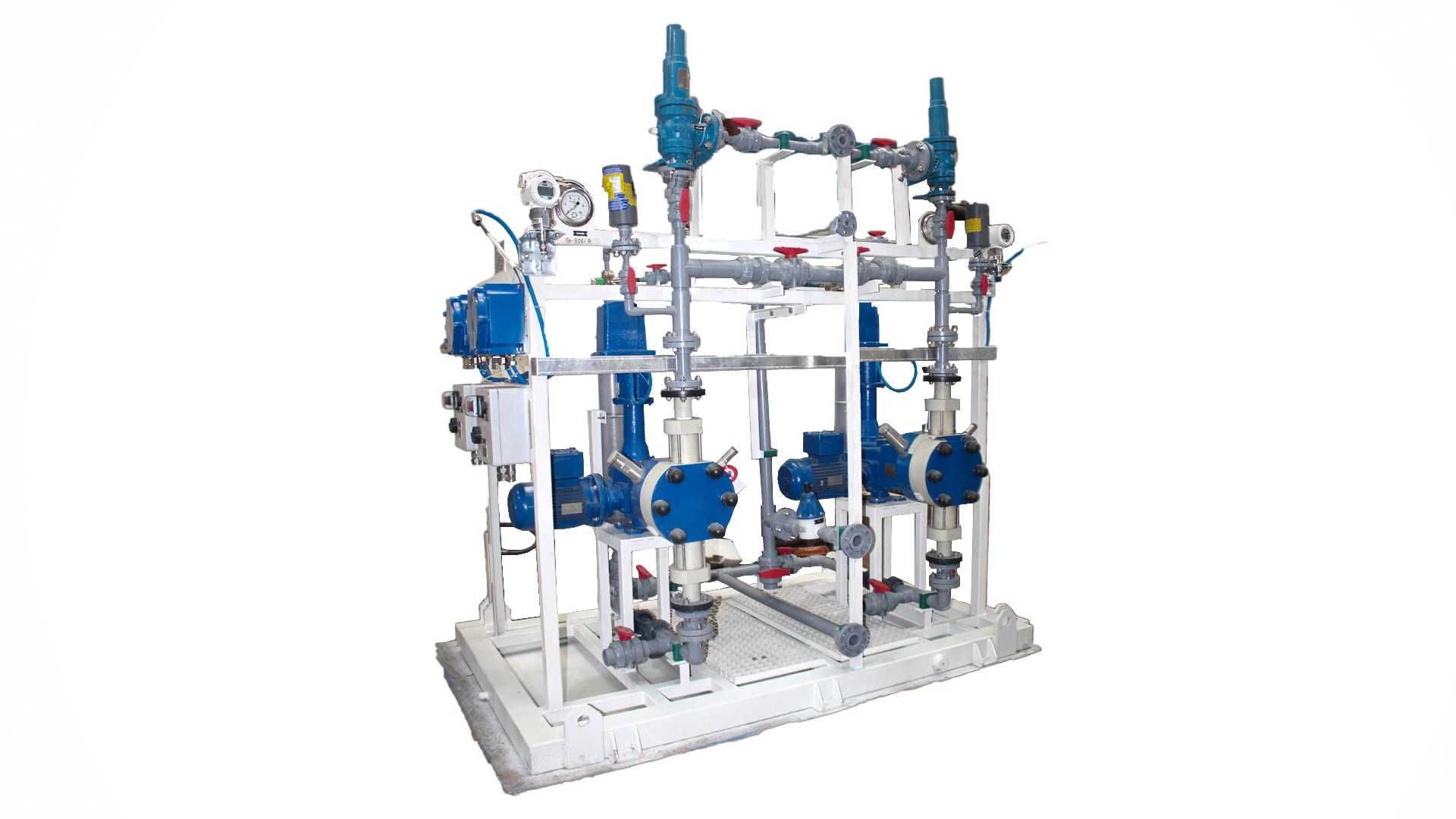

ABODEX Systems specializes in compact, bespoke pump skid units designed for immediate deployment. Commonly known as packed pump skids, the majority of industrial pumps are marketed and sold as skid systems. A skid package comprises a pump and a driver, such as an electric motor or a diesel engine, which are installed on a steel foundation. Everything is meticulously selected: Every pump, material, and accessory for our pump skids is by hand. We promise that the module will work perfectly, which lets us offer a "turnkey" option. Drawing on extensive pump knowledge and years of diverse industry experience, we manage every aspect of pump skid development, from initial concept to final commissioning. Our offerings encompass systems capable of handling flow rates ranging from 10m ml/h to 40 m3/h, with discharge pressures reaching up to 300 bar. The way our skids are made depends on your needs and the room you have. As you might expect, we also follow all national and foreign rules. We take care of the whole process, from transport and setup to acceptance and approval, as well as installation and commissioning on-site.
-01.jpeg)
Components of pump skids
Industrial applications of pump skids
Pumps
Accurate flow rates and targeted back pressures are provided by dosing or metering pumps that meet API 675 standards. Packed plunger designs or hydraulically operated balanced diaphragm structure are the preferred pump types. Pump capacity can be manually adjusted with the help of a manual stroke length adjustment tool. A controller that is electrically or pneumatically activated can automate the same process. Pump wetted elements are available in plastic and stainless steel construction. A safety feature called a diaphragm rupture detection system (DRDS) can be used in conjunction with the necessary safety interlock for diaphragm pumps.
Accessories
Accessories like a strainer, calibration column and suction accumulator are required for the pump suction conduit. A pulsation dampener, a pressure safety valve, and other required parts must be installed in the pump discharge line. These add-ons support the system in maintaining ideal flow conditions and protecting against strain and damage.
Instrumentation
To ensure that the dispensing process is both effective and verifiable, our systems incorporate critical instrumentation such as pressure gauges, flow meters, and level sensors. This equipment is necessary for control and observation. Fully automated controls may be achieved with a high degree of instrumentation.
Control System
Our dosing systems are centered around our state-of-the-art control systems, which allow for a smooth integration with the process control architectures that are currently in place. They provide automated dosing procedures and user-friendly interfaces. For chemical injection packages, skid-mounted units are the better option for a number of compelling reasons, including as their small size and modular design, simplicity of installation, operational flexibility, lower risk, cost-effectiveness, safety, dependability, and effective use of resources
Industrial applications of pump skids
Water and wastewater pump skids
Chemical pump skids
Petroleum
Petrochemical injection
Pulp and paper pump skids
Chemical Injection Systems
Compressor Systems
Pump Systems
Automatic Polymer
Why work with ABODEX
Comprehensive development all under one roof.
ABODEX offers complete end-to-end solutions, including engineered services and after-sales support. We operate our own in-house development department and each product will designed as per project specifications. These individual specialisms are perfectly synchronized to develop and implement your custom solution, ensuring quality throughout every stage of the process. This means that we can guarantee efficient order processing while complying with the most stringent of quality standards.
Fast and comprehensive support around the world from ABODEX service experts.
There for you when you need us: Our global commissioning and consultancy services are available 24/7. You'll have constant access to a qualified contact person who will take the time to give you expert advice on anything you need to know about. Additionally, we offer training and management solutions to ensure your team is equipped to maximize the efficiency and performance of ABODEX systems.
Compliance with specific standards
All our skids are designed in accordance with national and international standards and regulations by ABODEX. ABODEX is known for its strong application and design engineering and process equipment skills. We provide excellent products and services, including PDMS-compatible 3D drawings, by following ASME, API, ATEX, and IS requirements. We adhere strictly to every customer-specific requirement. Moreover, we meticulously consider special regulations governing base plates and pipelines, including associated welding and acceptance specifications. This ensures that our solutions not only meet but exceed the required quality and compliance standards.
